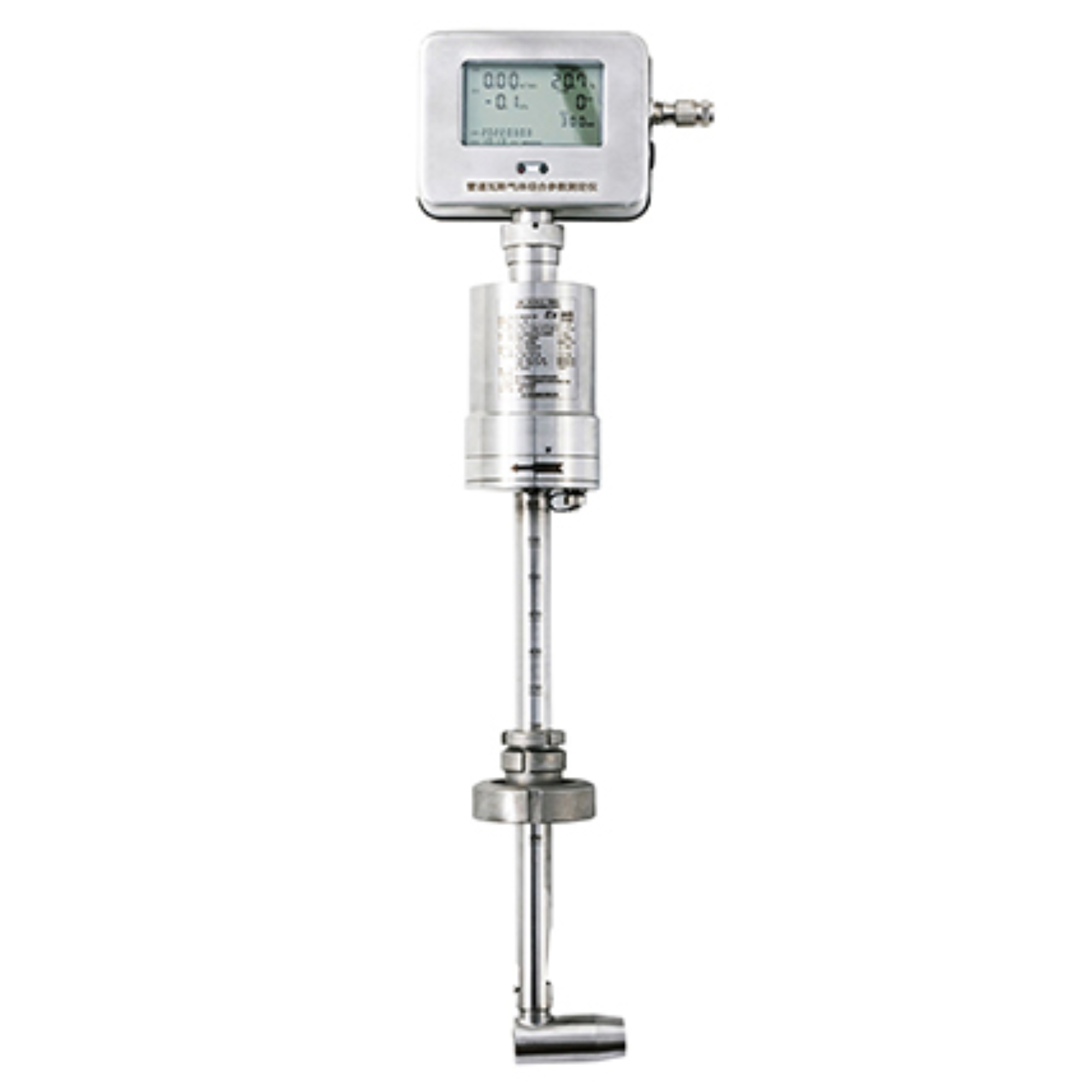

A fixed multi-parameter gas pipeline measuring instrument with insertion mechanism. The insertion depth can be adjusted to suit different pipeline size.
Feature
1.Simultaneously measurements of flow rate, pressure, temperature and concentration of methane, carbon monoxide, and oxygen.
2.Full range measurement as low as 0.5 m/s.
3.Insertion installation mechanism creates no flow resistance and adjustable insertion depth suitable for any pipe size.
4.Easy calibration.
5.Real-time data uploading with wireless transmission.
6.Insertion Installation Mechanism with Integrated Structure.
Technical parameter
CGWZ-100/350
CGWZ-100/350(A)
CH4(%)
0.00~1.00: ±0.05
>1.0~100.0 ±5.0%
Flow rate (m3/min)
(0.0~350.0) m3/min ±1.5% FS
Absolute pressure (kPa)
(10.0~200.0) kPa ±0.75% FS
Temperature (℃)
-10~60: ±1 ℃
CO
(10-6)
0~100: ±4
100~500: ±5%
500~1000: ±6%
O2 (%)
(0.0~25.0) % O2: ±3% FS
