Jinan Jiahong Technology Co., Ltd
Jinan Jiahong Technology Co., Ltd

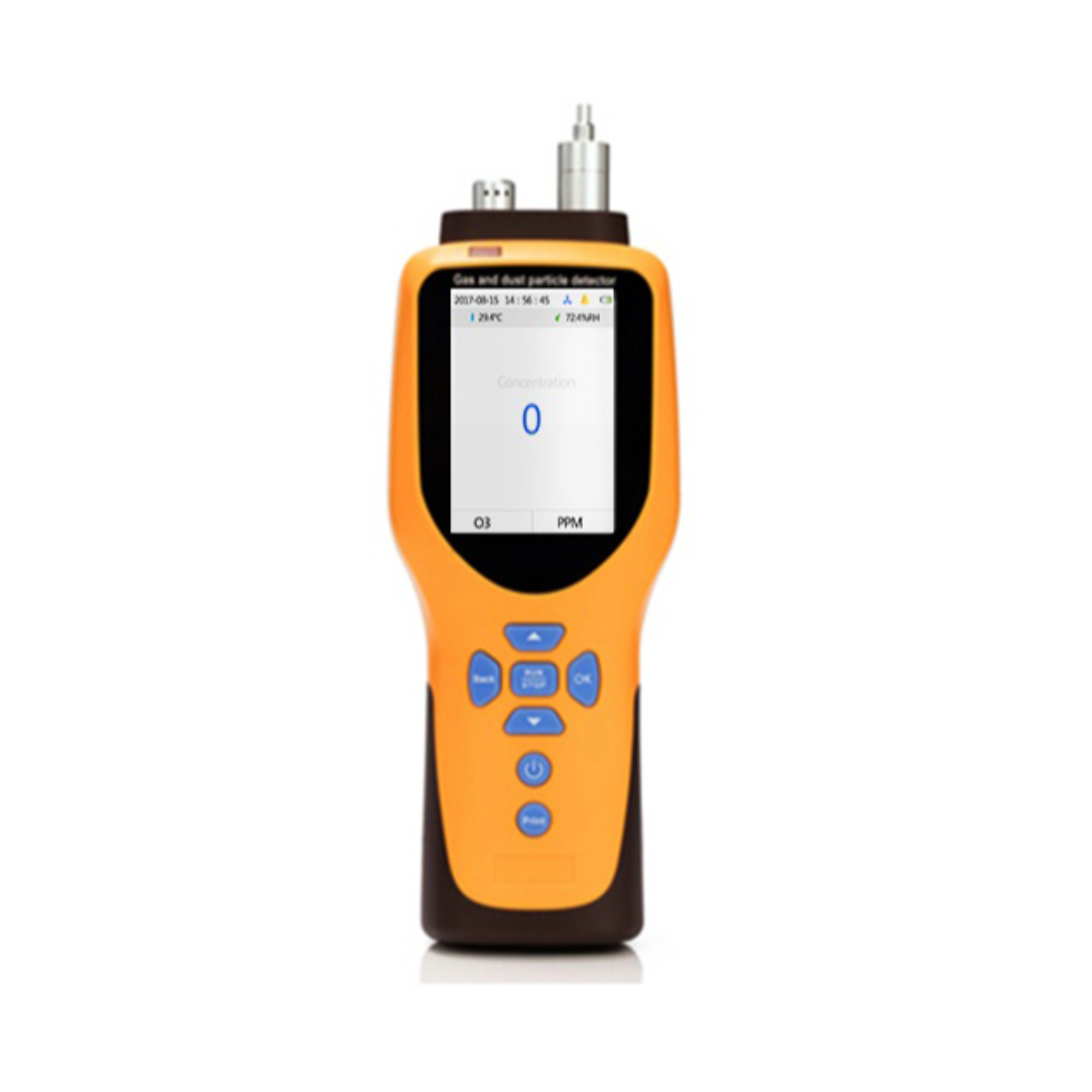

O3 pump suction type compound gas detector is suitable for Ozone gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical gas sensors and micro-controller technology, with fast response and high accuracy.
• custom setting detection mode,storage mode and print mode as needed
(1) standard function
• dust-proof, explosion-proof, intrinsically safe circuit design
• three concentration units are available: PPM,%VOL,mg/m3
• with temperature compensation，suitable for all kinds of harsh applications
Humanized Design

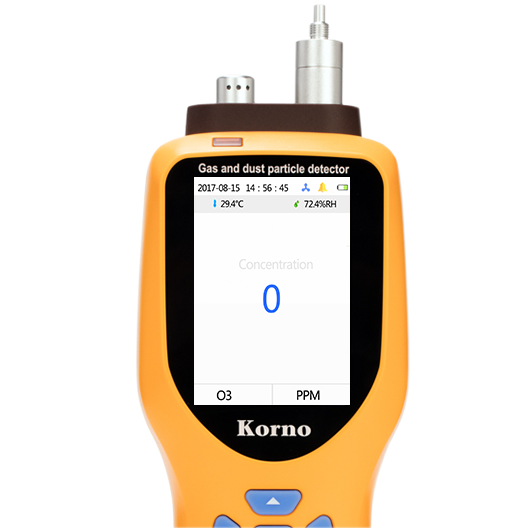

• 3.5 inches LCD color screen with IPS display,perfectly display from any angles
• pump can be turned off during the detection interval to prolong the standby time
Powerful Function
• data logging,up to 154,000 groups
• temperature and humidity detection
• can be comfigure flexibly up to 5 gas sensors
(2) optional function
• GPRS wireless transmission
• large capacity TF memory card storage
• dust detection(PM0.3/PM0.5,PM1.0,PM2.5,PM10)
• mobile printing,micro-printer or portable bluetooth printer
Wide Usage
Gas Detection:
Ozone, imported electrochemical sensor
Detection Range
0-1、2、5、10、20、50、100、500、1000、2000、5000、10000、30000PPM(optional)
Resolution:
0.001PPM,(0-1PPM）、0.01PPM（0-100PPM）、0.1PPM（0-1000PPM）、1PPM（0-30000ppm）
IP rating：
IP 66
Detection Accuracy:
≤±3% (Depending on the specific sensor）
Explosion Proof Sign:
Exdll CT4 (IA)
Scalable Gas Sensor :
User can customize 1-5 gas sensors in any combination
Temperature and Humidity(Optional):
Temperature detection range:-40 ～ 120℃
Humidity detection range:0-100%RH
Dust sensor :
Laser dust sensor is optional （0.3/0.5um、1.0um、2.5um、10um）
Detection Method：
pump suction built-in miniature air pump
Detection Pattern：
real-time detection mode, timing detection mode and cycle detection mode can be switch freely
Storage Method：
automatically saving and manually saving is available, up to 154,000 groups of data ,user can view history data on the display.
Print Mode:
automatic print and manual print are available, user can reset the print cycle ( micro printer is optional)
Operating Condition：
operating temperature: -30 ～ 60℃
operating humidity ≤90%RH，Non-condensing
operating pressure: -30Kpa ～ 100Kpa
Power: 4000mA high capacity polymer rechargeable battery
Dimensions / Weight:
255*80*60 mm（L×W×H） 0.5 Kg（net weight）

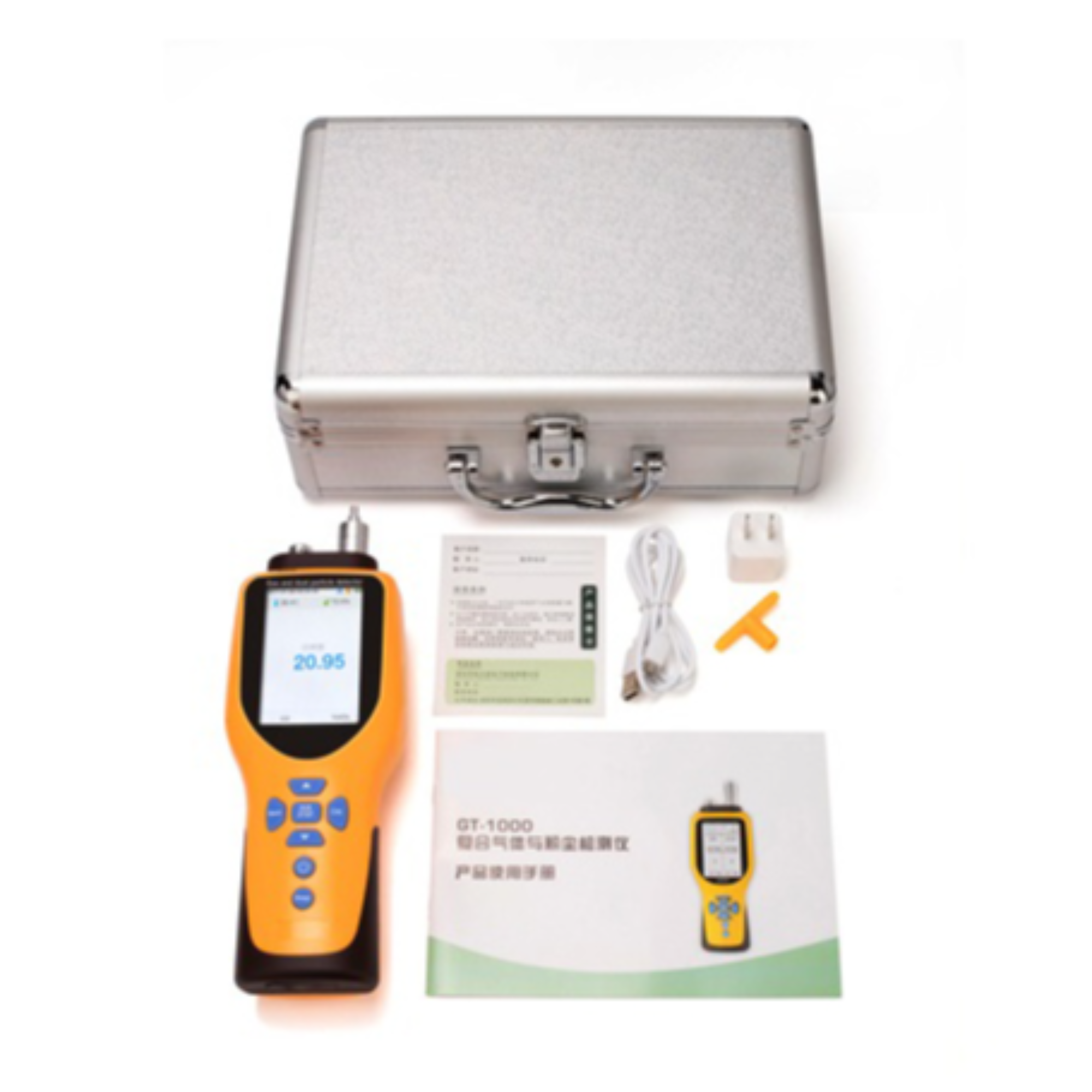

Standard Accessories：
instrument case,manual, certificate,USB charger,calibration cover
Optional Accessories:
micro printer, bluetooth printer,PM2.5 laser dust particle sensor, addition of various types of sensors, GPRS module, 32G memory card, man down alarm function.
