It is widely used in industries such as oil and gas detection at refined oil and chemical product terminals, gas stations, oil depot oil and gas recovery, oil and gas detection in oil product transportation pipelines and their emergency rescue detection, environmental protection, etc.

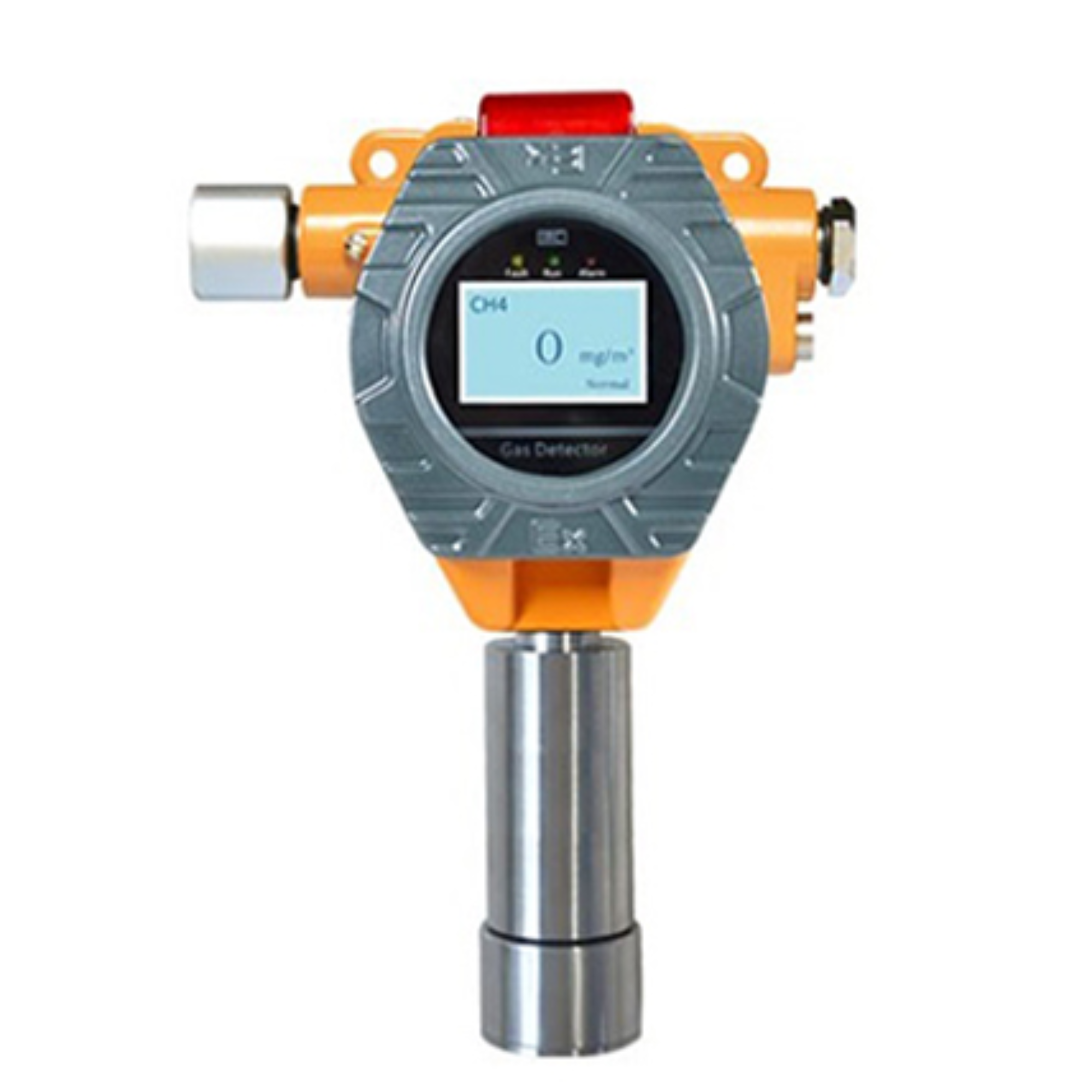

Oil and gas gas detector is mainly applied in oil depot oil and gas recovery equipment, gas station tertiary oil and gas recovery equipment, chemical plant oil and gas recovery equipment, and oil and gas recovery online monitoring system equipment. This detector adopts the infrared detection principle, has a long lifespan, precise detection, and basically requires no maintenance, greatly improving the overall performance of the equipment. At the same time, this detector can be optionally equipped with various output signals such as 4-20mA and RS485 signals for connection to multiple systems such as PLC and DCS to achieve full automation of oil and gas recovery. For oil and gas recovery systems with added AI systems, intelligent control is realized. This detector is also equipped with switching quantity signals and can also achieve direct linkage control of the oil and gas recovery pump without a PLC microprocessor. The process is simple and convenient, and it is easy to achieve automatic recovery.
etected Gas
Oil and Gas (Butane)
Detection Principle
Infrared Detection Principle
Detection Method
Pump Suction Type
Detection Range
0 - 10000mg/m³
Technical Parameters
Detected Gas
Oil and Gas (Butane)
Detection Principle
Infrared Detection Principle
Detection Method
Pump Suction Type
Detection Range
0 - 10000mg/m³
Accuracy
±3%FS
Display
LCD Display, LED Display
Debugging Method
Controller
Power Supply
DC24V
Output Signal

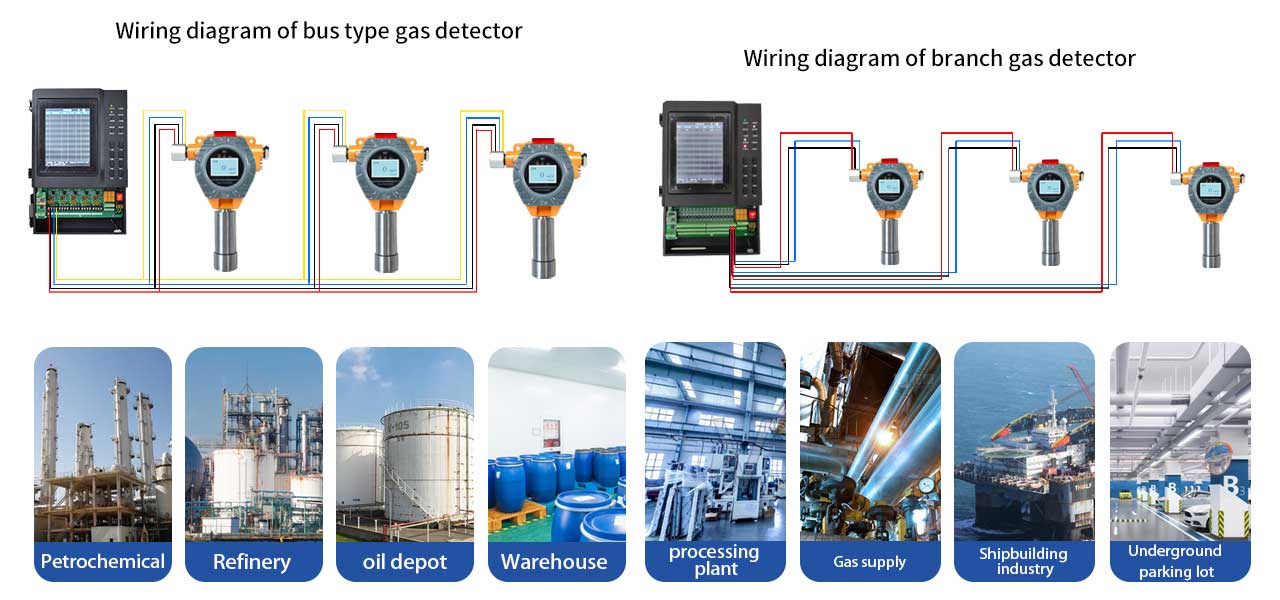

RS485 or 4 - 20mA (Three Wires)
Power Consumption
3W
Alarm
Sound and Light Alarm
Response Time
< 60s
Working Environment
Temperature: -10℃ - 60℃
Explosion-proof Method
Flameproof Type
Instrument Weight
1800g
Maximum Distance between Detector and Host
≤ 1000m

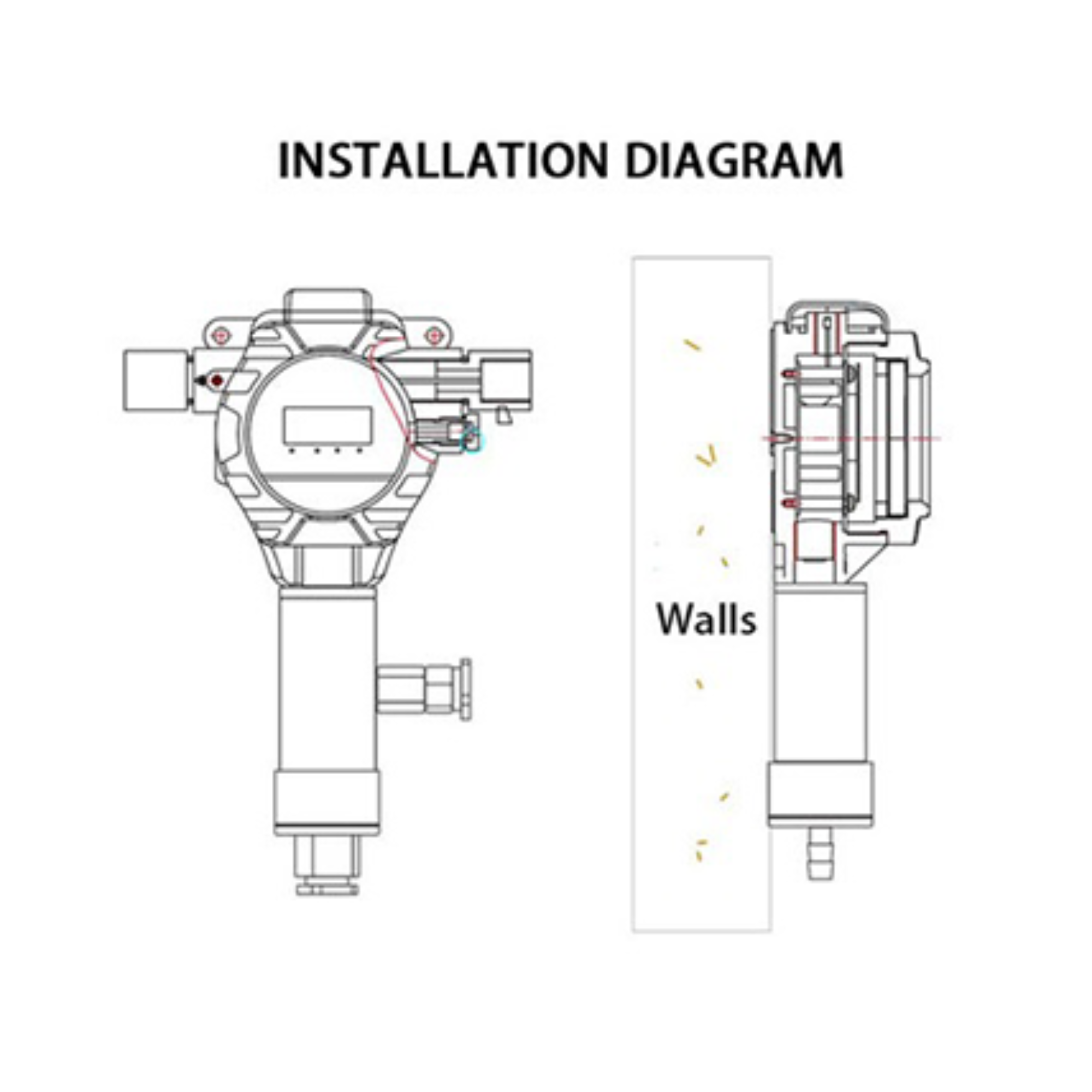

Installation Method
Pipeline Installation
