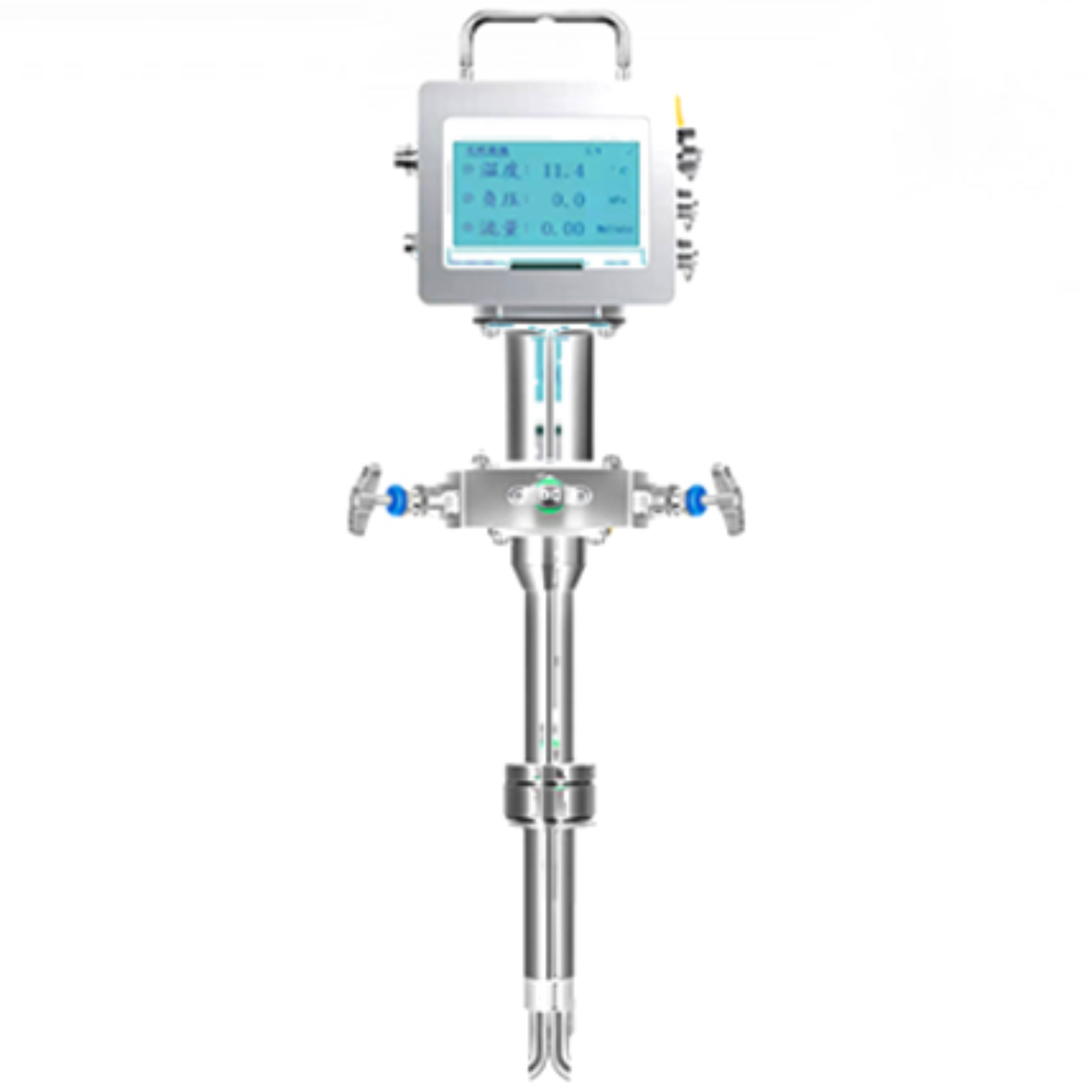

The Mine Gas Drainage Multi-Parameter Sensor is an intrinsically safe device designed to monitor key parameters in gas drainage pipelines, both in underground coal mines and on the surface. It provides local real-time display of flow rate, pressure, temperature, methane concentration, and carbon monoxide levels.
1. Incorporates high-precision differential pressure sensing elements and big data algorithm technology, enabling accurate flow measurement as low as 0.4 m/s.
2. Features automatic zero-point calibration to minimize maintenance requirements and improve low-flow stability.
3. Designed with a clamp-on mounting structure and integrated drain port for simplified installation and upkeep.
4. Supports methane and carbon monoxide monitoring within pipelines; utilizes a single cable for both power and data transmission.
5. The flow sampling unit allows bidirectional installation and offers front-facing display and operation independent of flow direction.
6. Features a quick-release flow sampling unit compatible with pipe diameters ranging from DN100 to DN1500.
Functional Features
Technical Parameters
Electrical Performance
Operating Voltage
9V to 25V
Operating Current
≤60mA
Measurement Range and Basic Error
Differential Pressure
Measurement Range
0 to 600 Pa or 0 to 1250 Pa
Basic error
≤±2% of full scale
Absolute Pressure
Measurement Range
0 kPa to 200 kPa
Basic error
≤±3% of full scale
Temperature
Measurement Range
0°C to 100°C
Basic error
≤±2.5% of full scale
Flow
Measurement Range
0 to 16 m/s or 0 to 30 m/s
Basic error
±0.2 m/s
Pipe Diameter Range
50–1000 mm
Notes
Flow Conversion
Q=0.25*πd²*60*V V—Flow velocity (m/s), d—Diameter (m)
Output Format
Intelligent (RS485)
Intelligent (CAN)
Protection Rating
IP65
