Portable Sulfuretted Hydrogen (H2S) gas detector uses an advanced large-scale integrated circuit technology,Intelligent design technology and proprietary digital simulation hybrid communication technology gas detector. The detector uses a natural diffusion method to detect gas, and the sensitive element uses high -quality gas sensors. It has excellent sensitivity and excellent repetitiveness, convenient use and maintenance, which greatly meets the safety of the industrial sit.

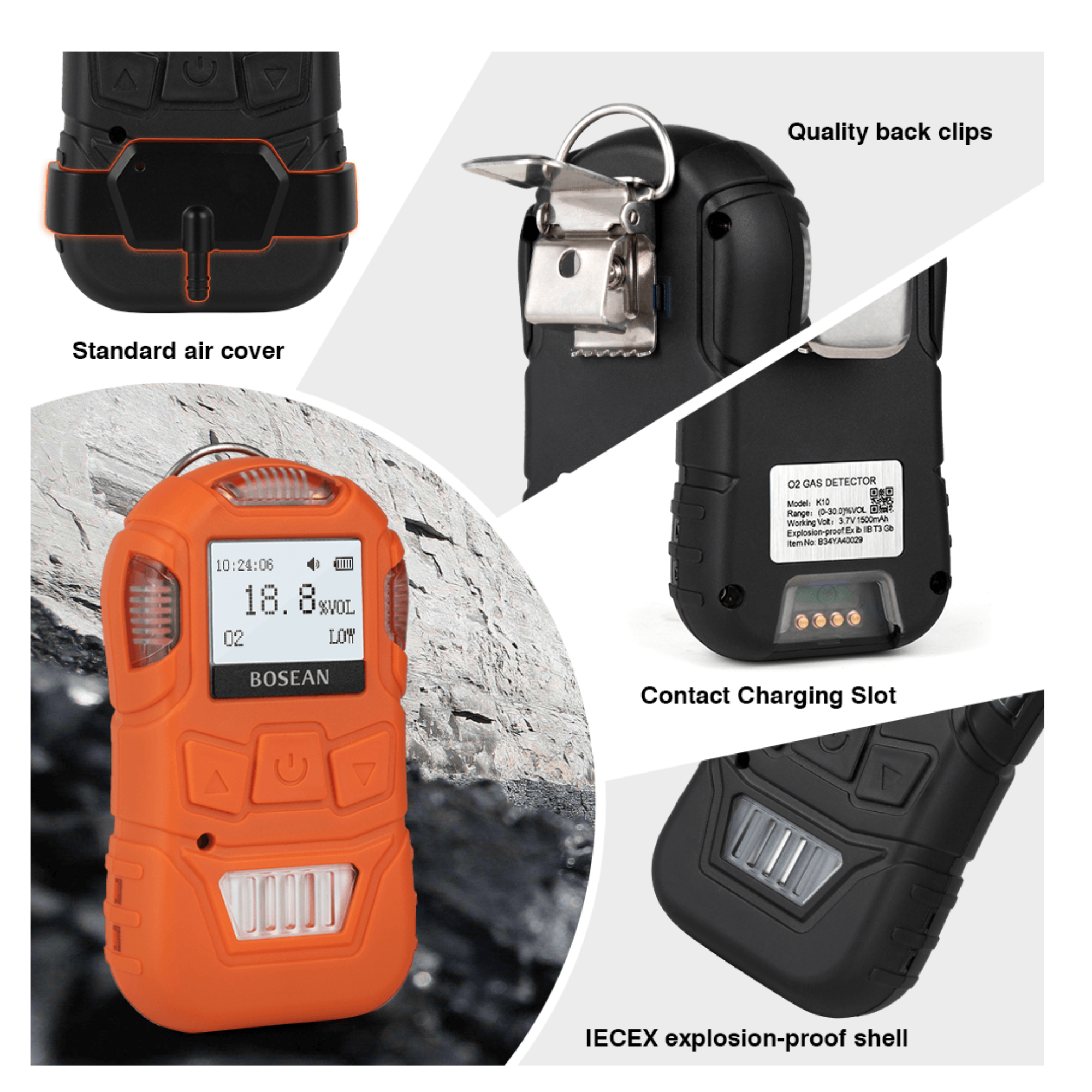

The shell is made of high -strength engineering plastics and composite non-slip rubber. High intensity, good feel, waterproof, dustproof, explosion -proof. This detector is widely used in oil, chemical, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture and other industries.
Explosion proof：Ex ib llC T4 Gb
Sampling method
natural diffusion
Accuracy
≦ 5% F.S.
Response time
T＜30s

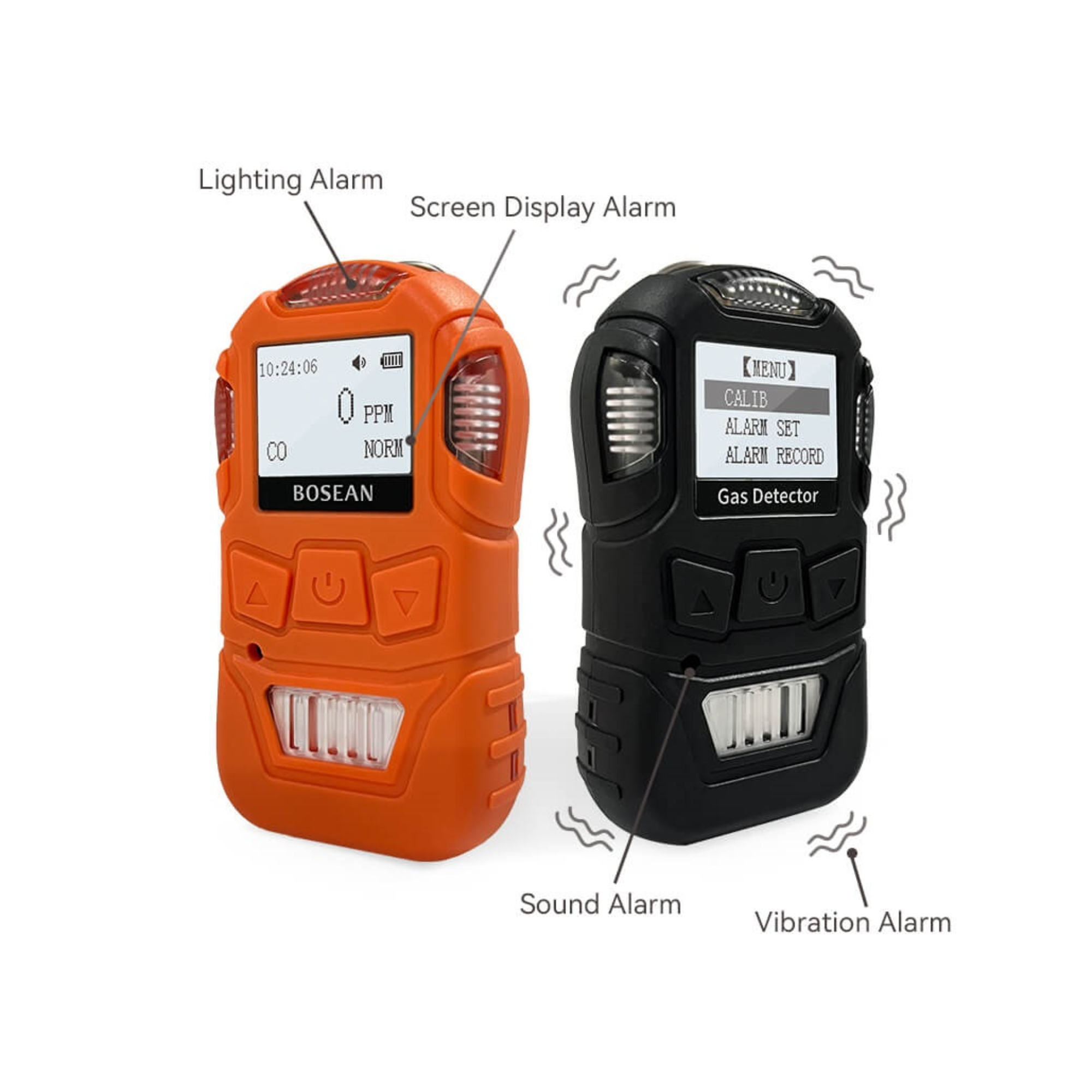

Alarm Method
four alarm method: sound, vibration, light, display
Operating Environment
Operating temperature -10℃～55℃
Humidity
＜95%RH non-condensing
Operating voltage
DC3.7V Li battery 1500mAh
Working time
≧8h continuously
Charging time
4h～6h
Sensor life
2 years
Protection category
IP66
Weight
about 130g (including battery but without accessories)
Dimension
109mm×60mm×30mm
SPECIFICATIONS
