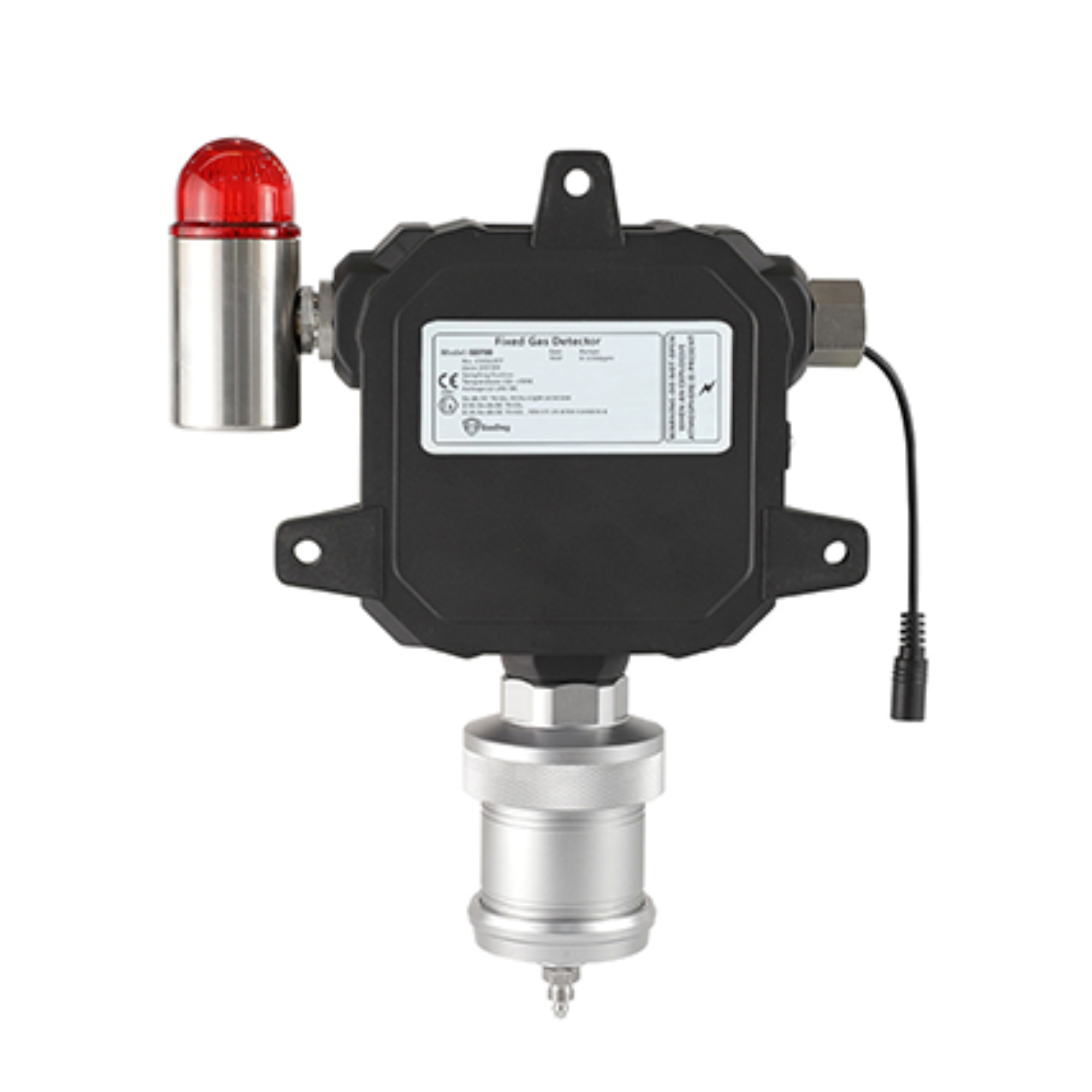

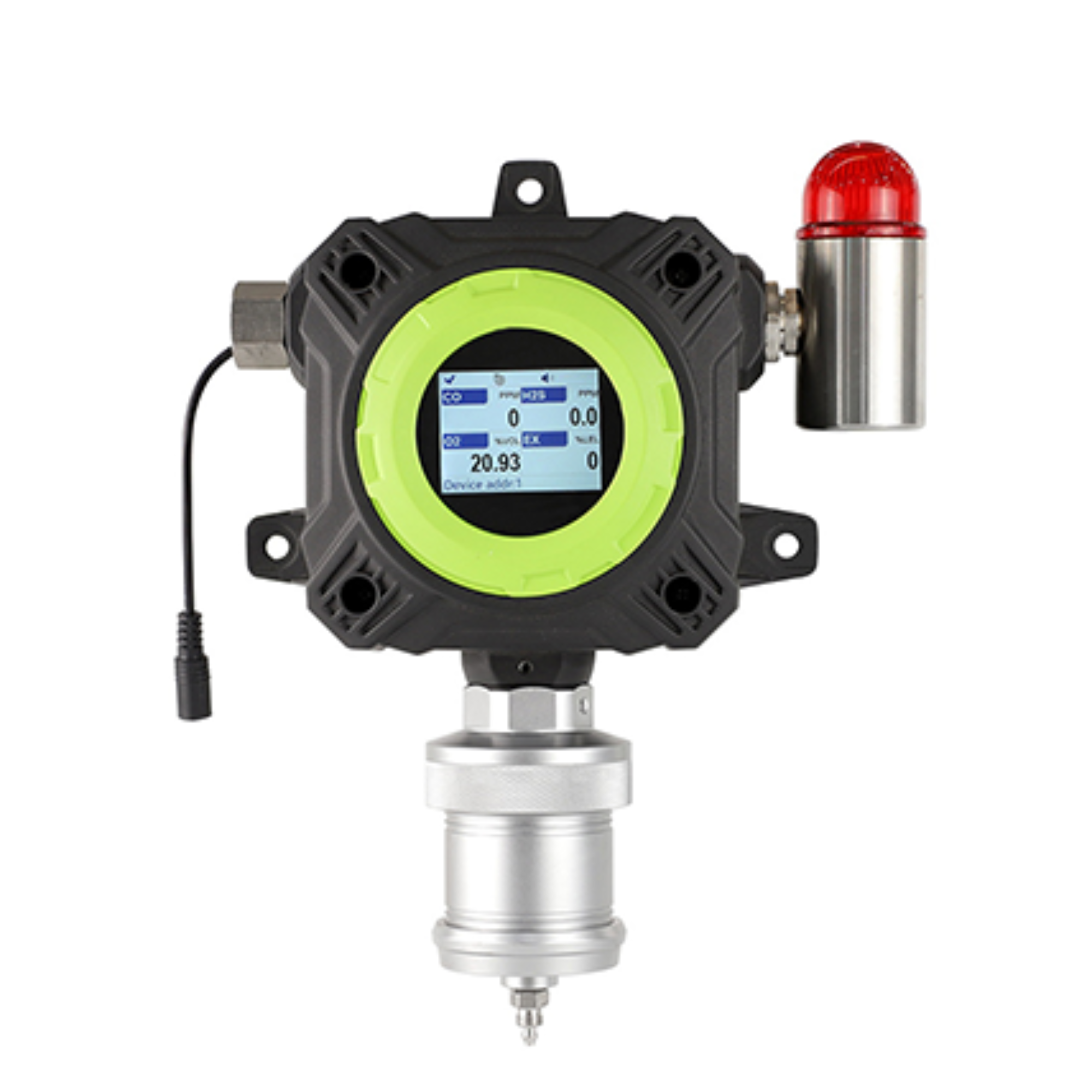

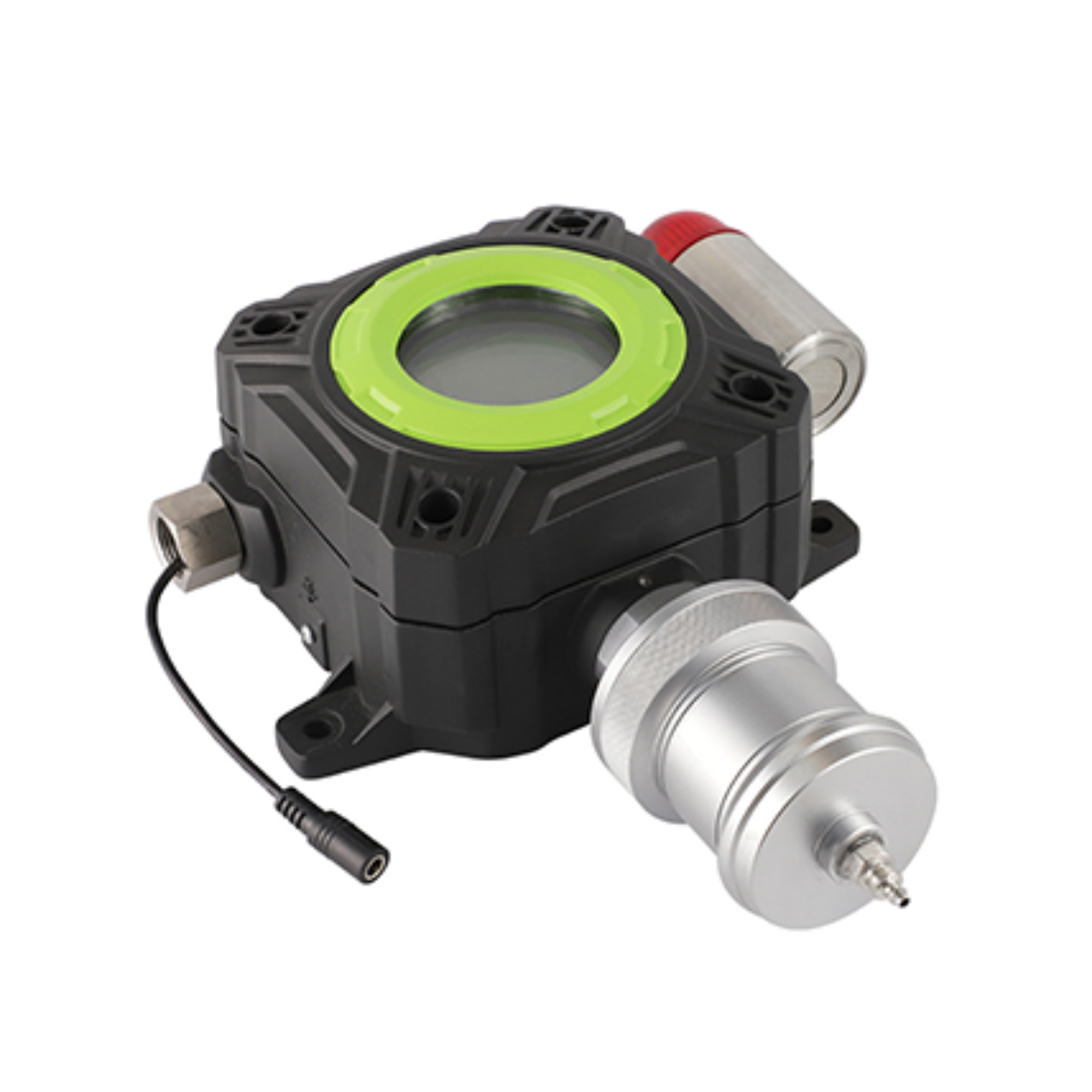

Our industrial fixed CO2 gas detector is a wall mounted monitor used for Carbon Dioxide detection, with measuring range of 0-2000/5000/10000/20000ppm and 0-10%/20%/50%/100% VOL. This gas tester has sound & light alarm and real time display, which can monitor gas leak 24 hours online.
Gas Monitor for CO2 Detecting
Industrial fixed Carbon Dioxide detector can be installed in cellar, garage and other confined places for detecting and monitoring CO2 concentration 24 hours online.
Basic Parameters:
Model: GD700-CO2
Detection Principle: Infrared
Gas: Carbon Dioxide (CO2)
Range: 0 to 9999ppm, 0-100% VOL
Resolution: 1ppm, 0.001% VOL, 0.01% VOL, 0.1% VOL
Accuracy: ≤±3% F.S.
Explosion-proof Grade: Ⅱ 2G Ex ia Ⅱ CT4 Ga
Certification: CE, ATEX
Warranty: 12 months
SPECIFICATIONS
Model
GD700-CO2
Detection Principle
Infrared
Gas
Carbon Dioxide (CO2)
Range (Optional)
0 to 1000ppm, 0 to 2000ppm, 0 to 5000ppm, 0 to 9999ppm, 0 to 2% VOL, 0 to 5% VOL, 0 to 10% VOL, 0 to 20% VOL, 0 to 25% VOL, 0 to 30% VOL, 0 to 50% VOL, 0 to 100% VOL
Resolution
1ppm(0-1000/2000/5000/9999ppm), 0.001% VOL(0-2% VOL, 0-5% VOL), 0.01% VOL (0-10% VOL, 0-20% VOL), 0.01% VOL (0-25% VOL, 0-30% VOL, 0-50% VOL), 0.1% VOL (0-100% VOL)
Calibration Kit
Gas pressure regulator (calibration gas cylinder NOT included)
Accuracy
≤±3% F.S.
Response Time
≤30s
Pump Flow Rate
0.35~0.5 L/min
Communication and Data Download
With PC software, history data can be downloaded, stored, printed, and analyzed on a computer
Network Frequency
2.4G high frequency
Zero Shift
≤±1% (F.S./year)
Signal Output (Optional)
4-20mA and RS485
Relay output: one group of relay output (1NO, 24V 100mA) for one alarm (default)
Alarms
Sound, light
Display
2.4 inch color display, resolution 320*240
Installation
Wall-mounted, piping type, flow-type (according to the detected environment)
Connection
G1/2 external thread explosion-proof flexible pipe
Thread Size
M45*2mm
Operating Time
24h
Explosion-proof Grade
Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade
IP66
Certification
CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage
12-36V DC
Case Material
Die-casting aluminum housing
Operating Temperature
-10℃~50℃
Operating Humidity
0~95%RH (non-condensing)
Dimension
286*202*96mm (H x W x D)
Warranty
12 months
Weight
3.4kg (3.8kg with alarm light)
Accessories
Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)
