Portable gas analyzer for sale. This handheld multi gas analyser can detect 4 gases, including NO2 (0-10ppm), SO2 (0-10ppm), CO (0-20ppm), and O3 (0-10ppm), with high definition LCD display to show the measurement data, 1-18 kinds of gases can be customized.
Gas Analyzer for Multi Gas Monitoring
Portable gas analyzer can detect 4 gases in boiler room, refinery and other confined spaces. Our multi gas analyzer features a sensitive sensor and thermal printer, which can monitor exhaust gas accurately and printer data anytime.
Basic Parameters:
Model: GD600-GAS
Sampling Method: Pumping Suction
Gas: NO2, SO2, CO, O3
Resolution: 0.001ppm
Accuracy: ≤±2% F.S.
Explosion-proof Grade: Ⅱ 2G Ex ia Ⅱ CT4 Ga
Certification: CE, ATEX
Warranty: 12 months
SPECIFICATIONS
Model
GD600-GAS
Sampling Method
Pumping suction, 10 grades adjustable, flow rate range 0-500 mL/min.
Detecting Gas *
NO2, SO2, CO, O3
Measure Range
NO2: 0 to 10ppm, SO2: 0 to 10ppm, CO: 0 to 20ppm, O3: 0 to 10ppm
Resolution
NO2: 0.001ppm, SO2: 0.001ppm, CO: 0.001ppm, O3: 0.001ppm
Accuracy
≤±2% F.S.
Data Storage
8G SD memory card
Alarm
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Display
3.5 inch HD LCD display with resolution 320*480
Language
Chinese/English
Battery
Large capacity rechargeable lithium battery
Explosion-proof Grade
Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade
IP65
Certification
CE, ATEX
Operating Temperature
-40℃~70℃
Operating Humidity
0~95%RH (non-condensing)
Dimension
260*230*120mm
Weight
3700g
Standard Accessories

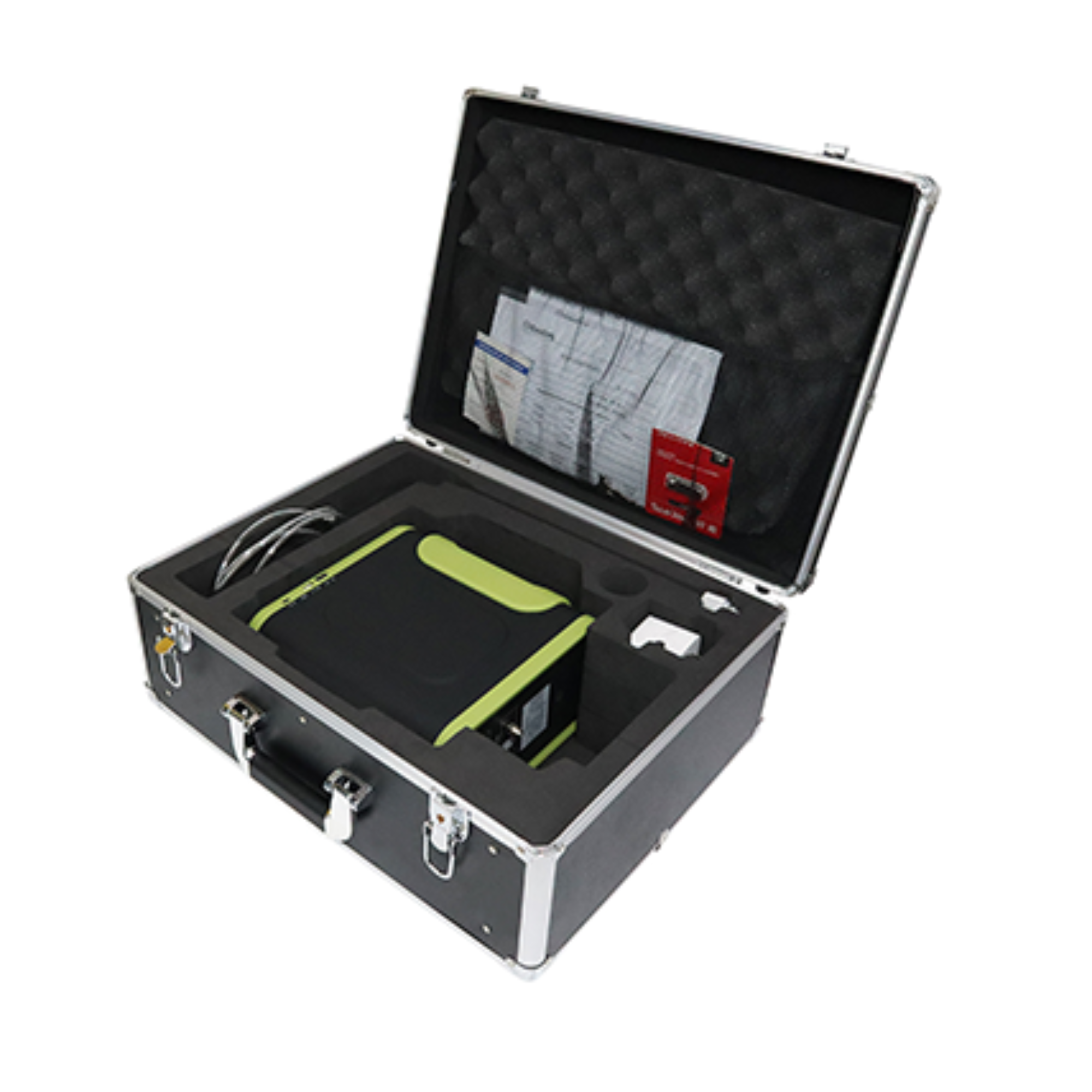

User manual, Micro-USB cable, Water vapour smoke filter, Intake sampling rod, 600mm tube, Carrying case
Optional Accessories *
Printer (built-in printer or external bluetooth printer), Pressure sensor, High temperature gun
