Jinan Jiahong Technology Co., Ltd
Jinan Jiahong Technology Co., Ltd

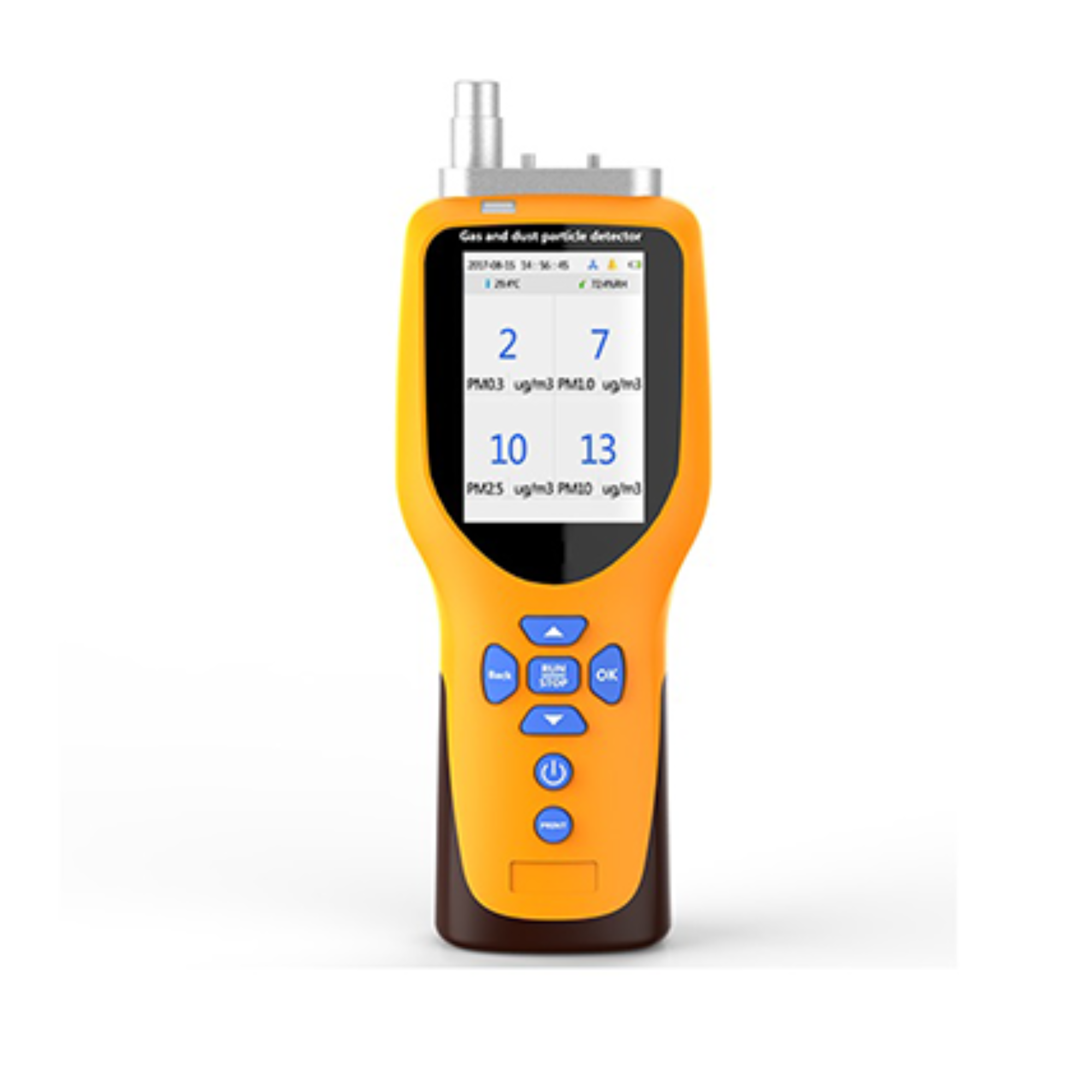

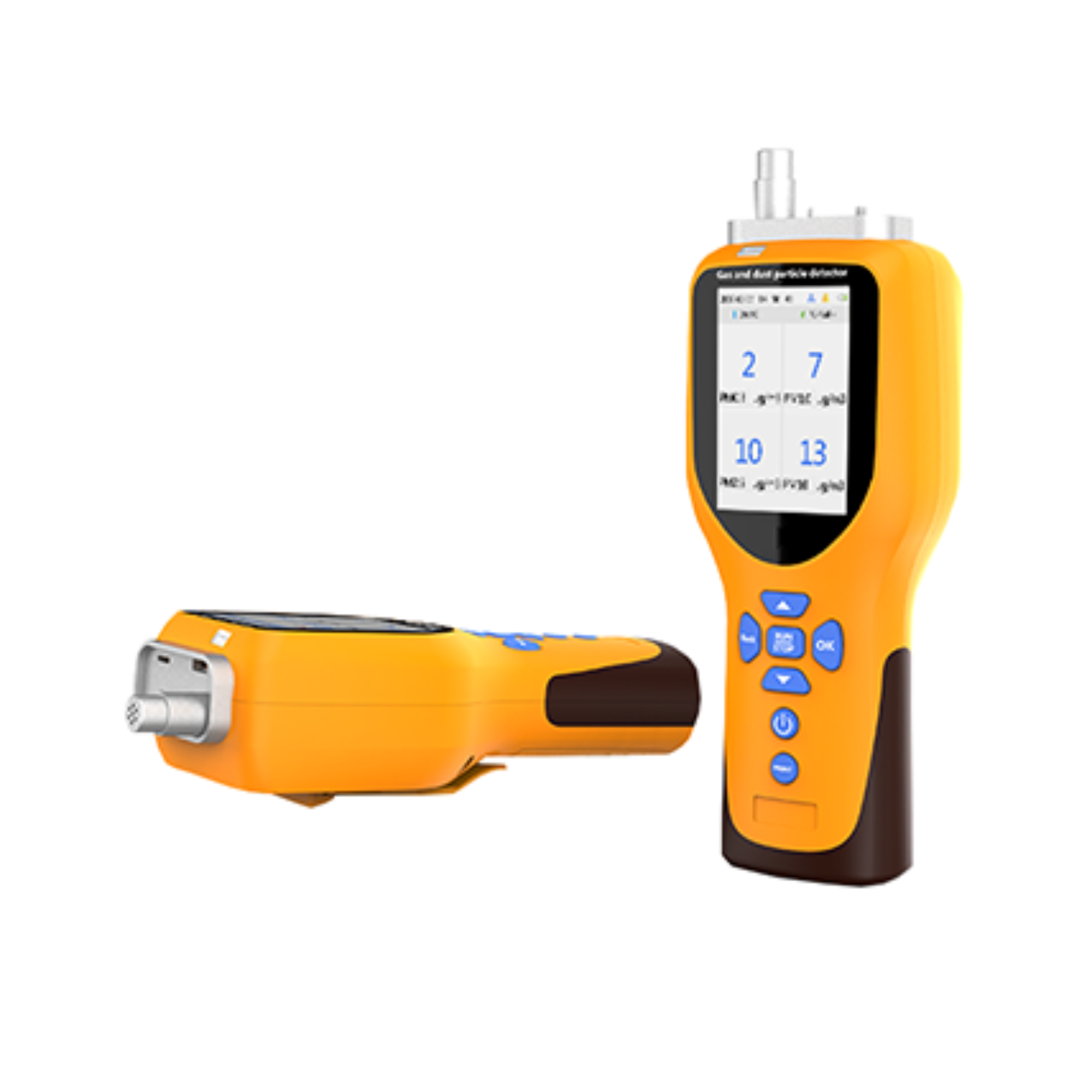

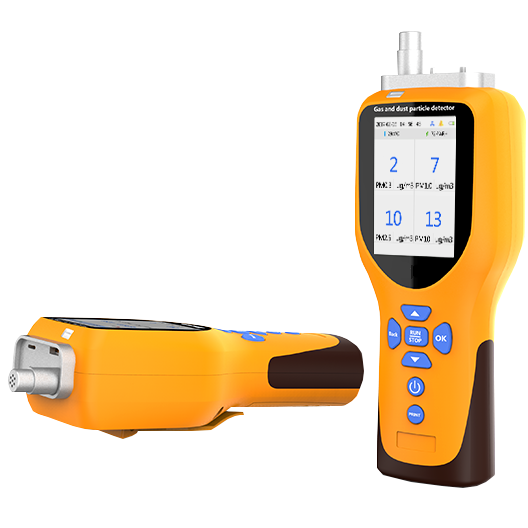

Dust particle counter is suitable for dust particle concentration monitoring in various dust free workshops, clean rooms, public environments,etc.It adopts imported Laser dust sensor and micro-controller technology, with fast response and high accuracy,which can measure the number of dust particles with various sizes at the same time.
• custom setting detection mode,storage mode and print mode as needed
(1) standard function
• data logging,up to 123,200 groups
(2) optional function
• large capacity TF memory card storage
• dust-proof, explosion-proof, intrinsically safe circuit design
• with temperature compensation，suitable for all kinds of harsh applications
Humanized Design

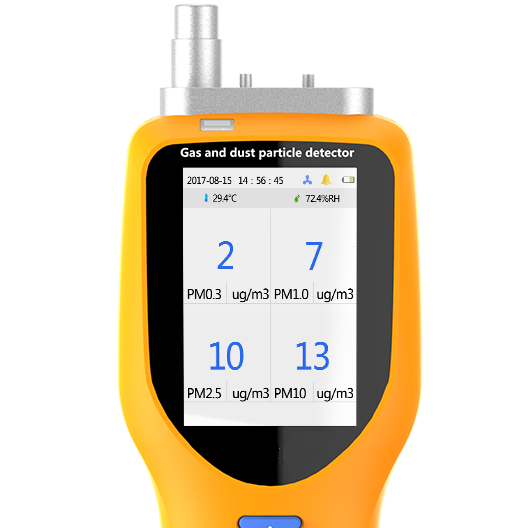

• 3.5 inches LCD color screen with IPS display,perfectly display from any angles
• pump can be turned off during the detection interval to prolong the standby time
Powerful Function
• temperature and humidity detection
• can detect PM0.3/PM0.5,PM1.0,PM2.5,PM10 at the same time
• mobile printing,micro-printer or portable bluetooth printer
Wide Usage
Dust Detection:
Dust Particle, Laser dust sensor (0.3/0.5um,1.0um,2.5um,10um)
Detection Range:
0-999ug/m3 0-9999999PC/L
Resolution:
1ug/m3,1PC/L
IP rating：
IP65
Detection Accuracy:
≤±5% (Depending on the specific sensor）
Explosion Proof Sign:
Exdll CT4 (IA)
Scalable Gas Sensor :
User can customize 1-3 gas sensors plus a dust sensor in any combination
Temperature and Humidity(Optional):
Temperature detection range:-40 ～ 120℃ Humidity detection range:0-100%RH
Detection Method：
pump suction built-in miniature air pump
Detection Pattern：
real-time detection mode, timing detection mode and cycle detection mode can be switch freely
Storage Method：
automatically saving and manually saving is available, up to 123,200 groups of data ,user can view history data on the display.
Print Mode:
automatic print and manual print are available, user can reset the print cycle ( micro printer is optional)
Operating Condition：
operating temperature: -30 ～ 60℃
operating humidity ≤90%RH，Non-condensing
operating pressure: -30Kpa ～ 100Kpa
Power: 4000mA high capacity polymer rechargeable battery
Dimensions / Weight:
255*80*60 mm（L×W×H） 0.5 Kg（net weight）
Standard Accessories：
instrument case,manual, certificate,USB charger,calibration cover
Optional Accessories:
micro printer, bluetooth printer,PM2.5 laser dust particle sensor, addition of various types of sensors, GPRS module, 32G memory card, man down alarm function.
